DTF Printer Print Head Precautions & Maintenance

In general, when choosing a suitable direct-to-film (DTF) printer, the first consideration should be the printing accuracy, which is directly determined by the print head. Therefore, the core element in selecting the right DTF machine is the precision of the print head. The higher the accuracy of the print head, the clearer and more vibrant the printed product designs, and the finer the details of the patterns.

The print head plays a decisive role when choosing a Epson i3200 DTF printer. The type of print head determines printing accuracy, inkjet volume, printing speed, production costs, etc. Additionally, the choice of print head should also take into account the fabric type, cost estimation, production capacity requirements, and the potential expenses associated with frequent print head replacements.

The print head of a DTF Pet film printer is a highly precise and expensive component, and it is susceptible to damage. Proper maintenance is crucial in daily printing to extend the lifespan of the print head. The focus should not only be on the cost and durability of the equipment but also on selecting the appropriate motherboard model and print head type. A good print head not only enhances the aesthetics of printed products but also ensures the accuracy of the printed patterns, reducing production costs and minimizing the occurrence of malfunctions.

MTuTech has compiled a list of 7 harmful behaviors related to (A1/A2/A3) DTF printer print heads. It is advised that customers pay close attention to these when using the equipment:

Random installation and disassembly of circuits without turning off the power switch and disconnecting the main power supply may damage the lifespan of each system and endanger the printer nozzles.

Mixing inks without consideration for different batches or brands, or using low-quality inks or cleaning solutions can alter ink color and quality, affecting print quality and clogging the print head. The quality of the cleaning solution may also corrode the print head.

Avoid forcefully cleaning the print head. If the nozzle is slightly blocked, it is recommended to use a vacuum cleaner to remove dust and then proceed with detailed subsequent cleaning.

Do not immerse the entire print head in cleaning solution. Cleaning solution has a certain corrosiveness, so only a suitable amount should be introduced into the nozzle for cleaning.

Using non-quality control products to clean the print head of a DTF machine. It is recommended to use manufacturer-approved products and quality control products for cleaning the nozzle, as the print head is easily contaminated and worn.

Improper adjustment of DTF print head position. Do not use force to replace or fine-tune the print head. Follow the specifications in the user manual carefully.

Not paying attention to protecting the circuit board and other internal systems during cleaning. When cleaning, please turn off the power of the DTF printing machine and ensure that water does not come into contact with the circuit board and other internal systems.

Print Head Maintenance Steps:

Step 1: Perform thorough cleaning work before printing. Clean the printing platform area and remove dirt and dust from the surface of the release film to prevent static electricity. Dust adhering above the print head nozzles can cause nozzle blockage.

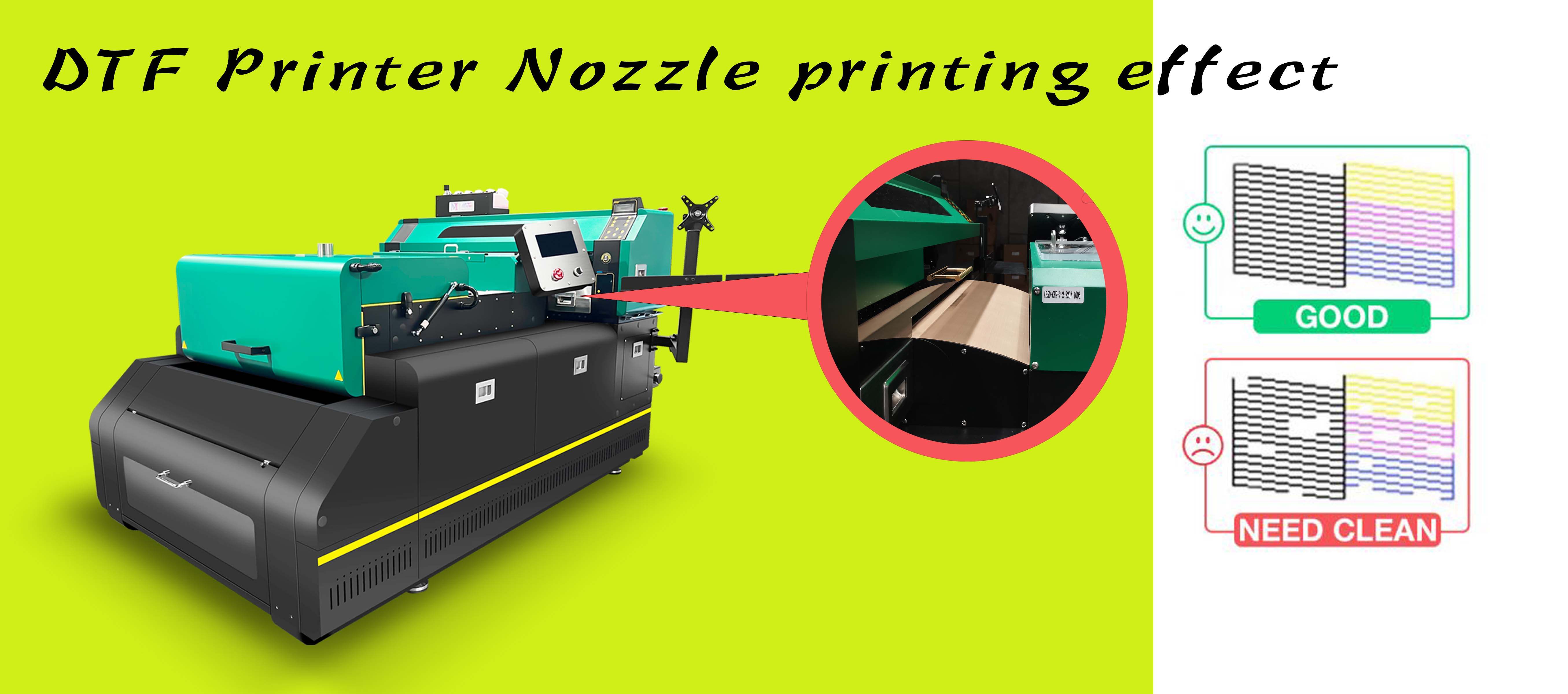

Step 2: Print a test strip to check the print head. Before starting or after shutting down, print a test strip to check the status of the print head. If blockages or misfiring occur, clean the print head promptly. Adjust the print head to the normal state before continuing with the daily printing tasks to minimize waste.

Step 3: Check the status of the print head regularly. During the T-shirt heat transfer film printing process, regularly check the status of the print head every interval of time. If the print status is not satisfactory, pause the printing task, identify the fault points, adjust the print head status, and continue printing.

In summary, the print head stands as a core component of the DTF t shirt printer. Thoughtful and regular maintenance of the print head is a crucial aspect of daily operations that cannot be overlooked. Opting for superior print head maintenance reduces the probability of encountering issues in DTF printing. For a comprehensive understanding of everything you need to know about maintaining your DTF printer, further insights await you.

Should you encounter any challenges while operating your DTF printer, click the link to seek assistance from the experts at MTuTech. They are professionals in the digital printing industry, ready to lend their expertise and guidance.
