Breaking Down Complex Prints: How Visual Positioning Simplifies the Process

Introduction

In industrial and commercial UV printing, not all prints are created equal. Some require layered graphics, perfect registration, and printing on curved or irregular surfaces. Traditionally, these jobs demanded intense setup time and skilled manual alignment. But now, with visual positioning technology integrated into UV printers, complex prints are no longer a challenge—they're a streamlined, repeatable process. This blog explores how visual positioning simplifies even the most demanding print jobs with ease and accuracy.

What Makes a Print ‘Complex’?

- **Multi-layered artwork** that includes white ink underbase, spot gloss, or texture effects
- **Non-flat or contoured substrates** such as bottles, curved plastics, or pre-assembled parts
- **Multi-pass jobs** that require perfect alignment in sequential steps
- **Custom-shaped objects** that don’t fit a standard print jig
- **High-precision branding**, where misalignment of even 1mm ruins the final product

How Visual Positioning Solves These Challenges

Visual positioning systems use high-definition cameras, machine vision, and software algorithms to identify object boundaries, placement, orientation, and print zones. Here’s how they simplify complex jobs:

- **Auto-detection of irregular shapes**: No need for mechanical alignment tools.
- **Real-time image analysis**: Ensures perfect registration before each print pass.
- **Correction of skewed or rotated objects**: The printer auto-adjusts its origin and print path.
- **Dynamic scaling and centering**: Aligns artwork to available print area instantly.

Practical Examples of Simplified Complex Printing

- **Printing on cylindrical or tapered objects**: Visual positioning calculates curvature and places designs precisely.
- **Layered ink effects**: Ensures perfect alignment between underbase, color, and gloss layers.
- **Prints on irregular promotional items** like USBs, power banks, or tools.
- **Printing on curved glass panels** for appliance branding or interior décor.

Reducing Setup Time and Rework

With traditional printing methods, complex jobs could take hours of alignment and test runs. With visual positioning:
- Initial setup time is cut by more than 60%
- Test prints are rarely needed—real-time previews ensure confidence
- Error rate is drastically lowered, saving materials and operational costs

Benefits for Short-Run Customization

Visual positioning isn't just for mass production. It’s also a game changer for small-batch or one-off customized items:
- No need for custom jigs
- Faster job switching between different shapes
- Ideal for print-on-demand businesses offering unique or personalized goods

Integration with RIP and Workflow Software

Modern visual positioning UV printers often integrate with RIP software and workflow management tools. This means:
- Automated print job generation based on scanned object data
- Barcode or QR code scanning to instantly load the right artwork
- Enhanced automation from pre-press to final output

Conclusion

Visual positioning turns what used to be a painstaking and error-prone process into a reliable, fast, and efficient operation. For printers handling complex jobs—be it textured layers, awkward substrates, or tight tolerances—this technology offers a competitive edge. It doesn’t just handle complexity; it turns complexity into simplicity, helping businesses deliver high-precision results with confidence.

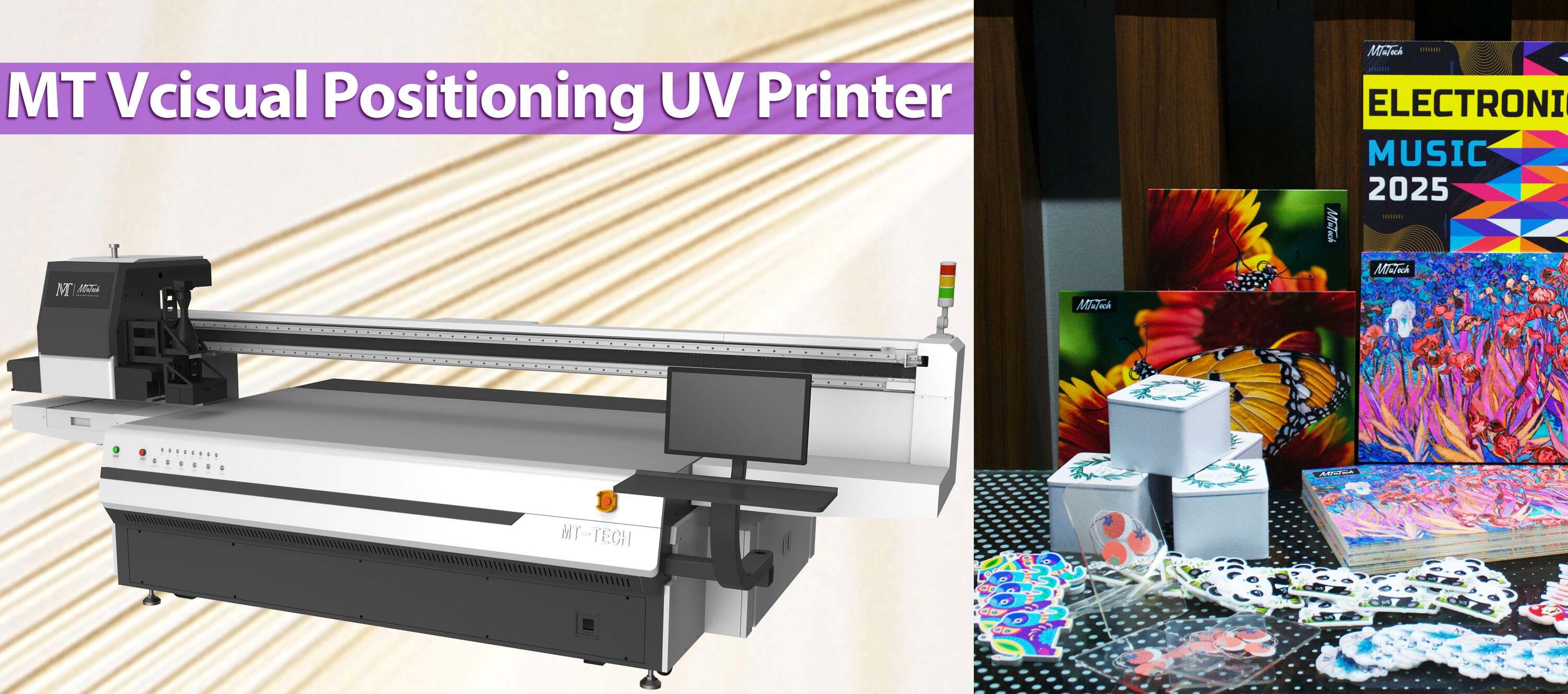

 Simplify your toughest jobs with our advanced visual positioning UV printer — designed to make complex prints look effortless.
