Description

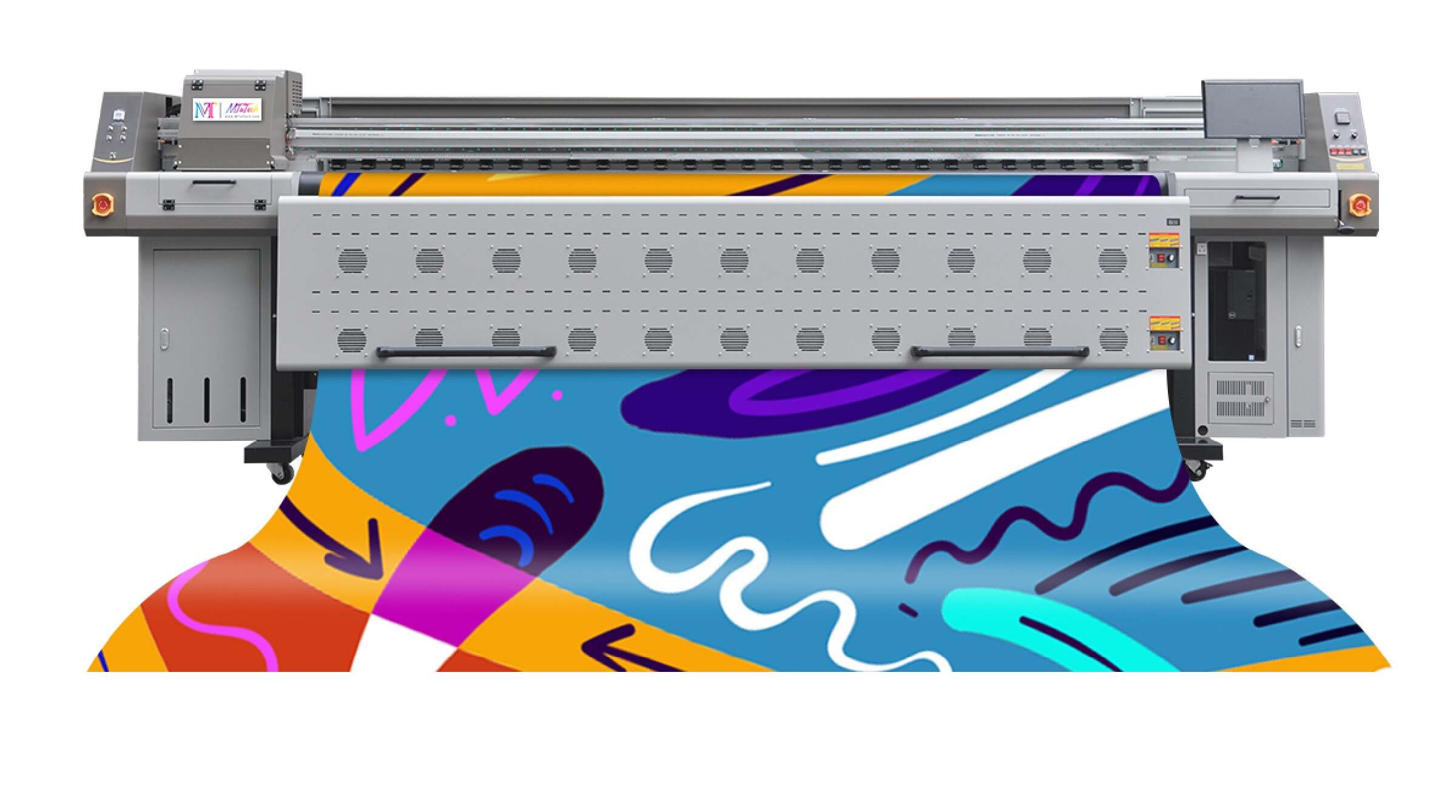

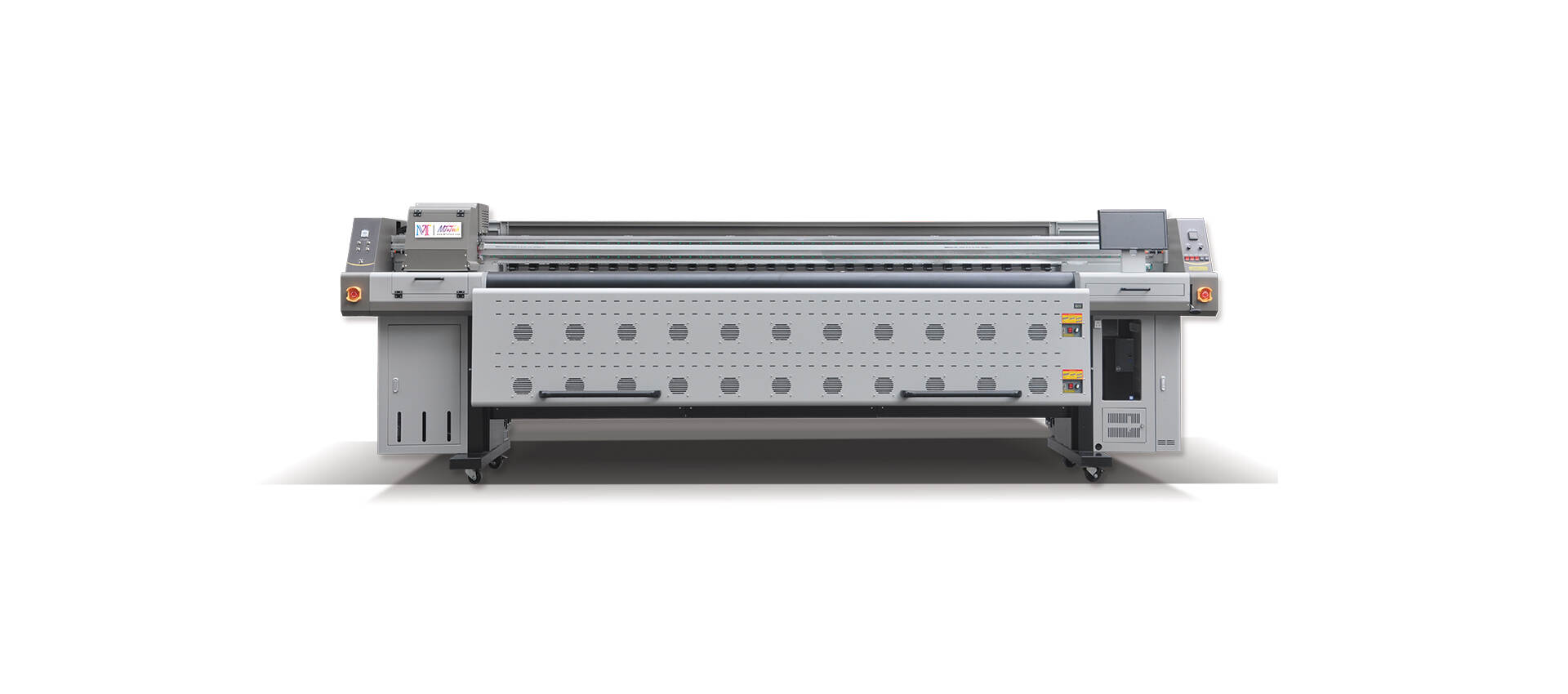

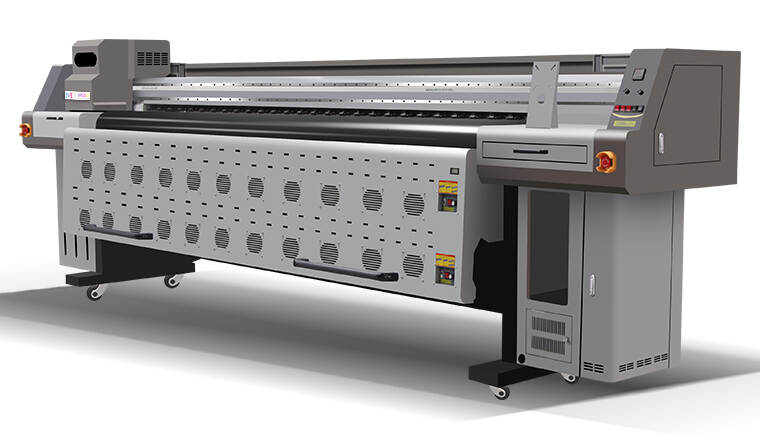

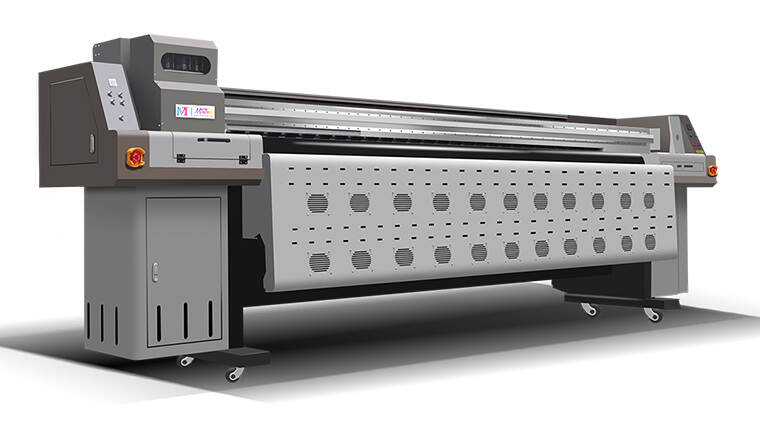

MT Industry Starfire Solvent Printer MT-SF3306/4 adopts machine controlling system which was tested more than five years. We use most of spare parts tested over 10 years. Thus printing quality is stable and reliable, so that MT Starfire Solvent Printers MT-SF3306/4 can bear long time continues printing work. Especially, the Patent technology to ensure 100% achieves 100m media printing within one time. The most important is the whole printer takes eco solvent printer's precision mechanical and technology as its production standard to produce Starfire solvent printer.

Features

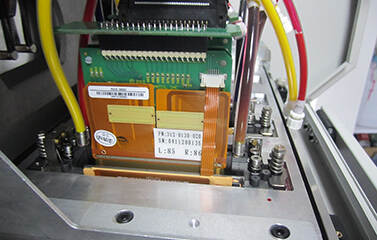

1. MT Starfire Solvent Printer MT-SF3306/4 adopts wider size printing platform

Client can choose 4pcs Starfire printheads model or 6pcs Starfire printheads model according to their demand at the beginning. This kind of solvent printing machine can be installed up to to 6pcs starfire 1024 for maximum.

2. MT Starfire Solvent Printer MT-SF3306/4 equipped with Four in one temperature controller with Three-stage adjustable temperature function.

Equip with the Pre-heater，middle heater and back heater, also as well as the printhead plate heater system for solvent printing process, it can be adjust the temperature of the media and printhead. The switches of heating system are in the same control panel, easy to operate and less fails.

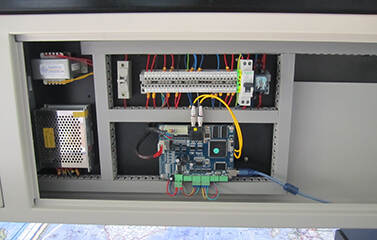

3. MT Starfire Solvent Printer MT-SF3306/4 adopts separate machine's main power and heater's main power.

Separate machine power and heater power to avoid huge electric current or electromagnetic wave disturb the printing quality.

4. As the top quality Starfire Solvent Printer MT-SF3306/4, it adopts linear guide rails with double-slider and sound off function, more durable and reliable for high precision printing.

5. MT Starfire Solvent Printer MT-SF3306/4 adopts separate infrared heating system to speed up printouts drying (optional).

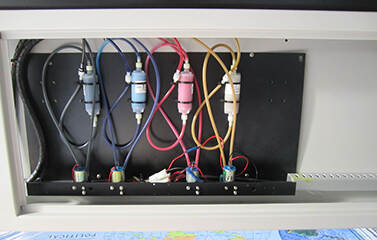

6. MT Starfire Solvent Printer MT-SF3306/4 equipped with secondary ink tank and ink circuit heating system suitable for low temperature working environment in winter.

7. MT Starfire Solvent Printer MT-SF3306/4 equipped with separate colors cleanout system.

Individual ink purging cleanout system is good for cleaning heads and saving ink.

8. MT Starfire Solvent Printer MT-SF3306/4 equipped with automatic cleaning system.Different from ink purging system, this is cleaning by cleaning solution with reserved suction channel for automatic printhead cleaning which is safe and convenient maintain function. Therefore, client can print on any time without clog trouble.

9. The height of printhead carriage plate can be adjust freely and easy to operate.

Controlling the height of printhead carriage plate by a rotary knob, which can control the height between printheads and printing platform easily.

10. MT Starfire Solvent Printer MT-SF3306/4 equipped with unique printhead protection stack with intelligent printhead moisturizing device.

This function can protect the printheads easily by pushing the carriage rightward after a busy day. After the solvent printing machine is shut down, the moisturizing device leaves all of printhead nozzles into cleaning solution to prevent nozzle clog caused by dry ink.

11. MT Starfire Solvent Printer MT-SF3306/4 adopts precision mechanical parts for higher accuracy of feeding and collecting system.

12.  MT Starfire Solvent Printer MT-SF3306/4 was installed LED lamp inside of printing platform.

Printing platform collocate with LED lamp, easy to observe and test the printing quality.

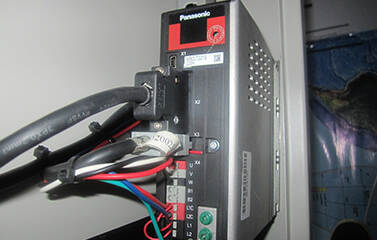

13. MT Starfire Solvent Printer MT-SF3306/4 equipped with 400W Panasonic servomotor AC drive motor.

400W Panasonic servo motor service for X direction which provide strong safeguard for the printhead carriage on high speed running, also working with 30K frequency of Starfire printhead in harmony that can be reach the printing speed of 360 m²/h.

14. There are three feeding systems are available for MT Starfire Solvent Printer, three take up systems are optional too. Three feeding system for different operate conditions: inserted feeding type with one roller, deposited feeding type with two rollers, deposited feeding type by dragging media with three rollers;

A.    Inserted media feeding (in 1 roller)

1 roller inserted media feeding is available if pictures need printing and jointing for high demand media feeding or volume production.

B.     2 deposited media feeding (on 2 rollers)

2 rollers deposited media feeding is optional if client needs change media frequently or has limit working space.

C.     Dragging media feeding (on 3 rollers)

Dragging media feeding on 3 rollers is improved from 2 rollers deposited media feeding, so it has the advantage of 2 rollers deposited media feeding. Because of the whole gears moving together, all these 3 rollers have motivity to avoid the media skidding in rollers.
