Description

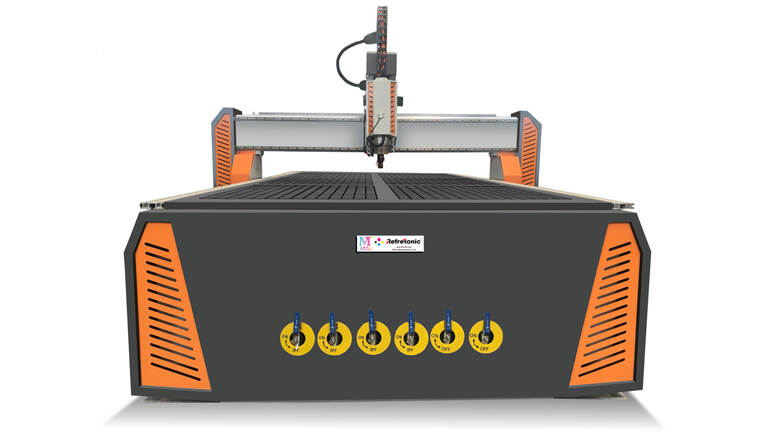

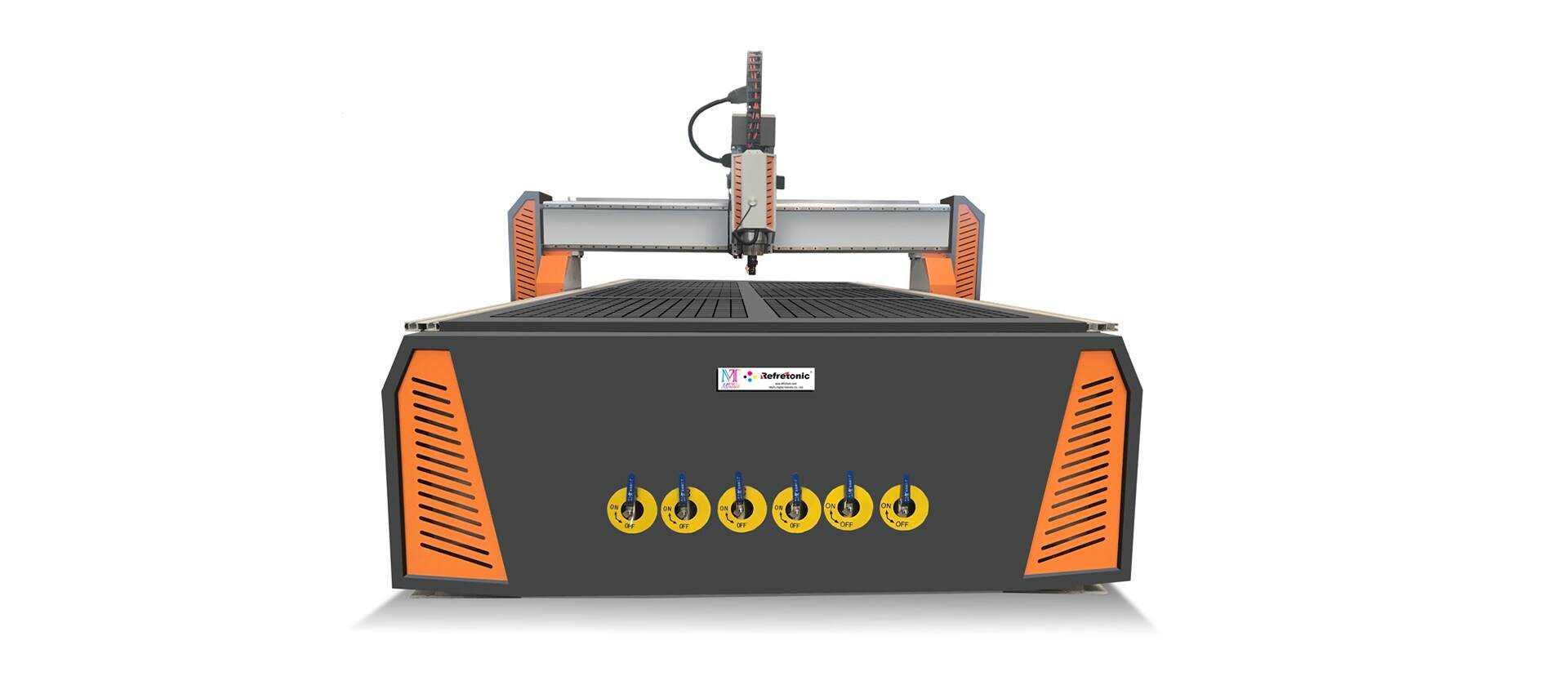

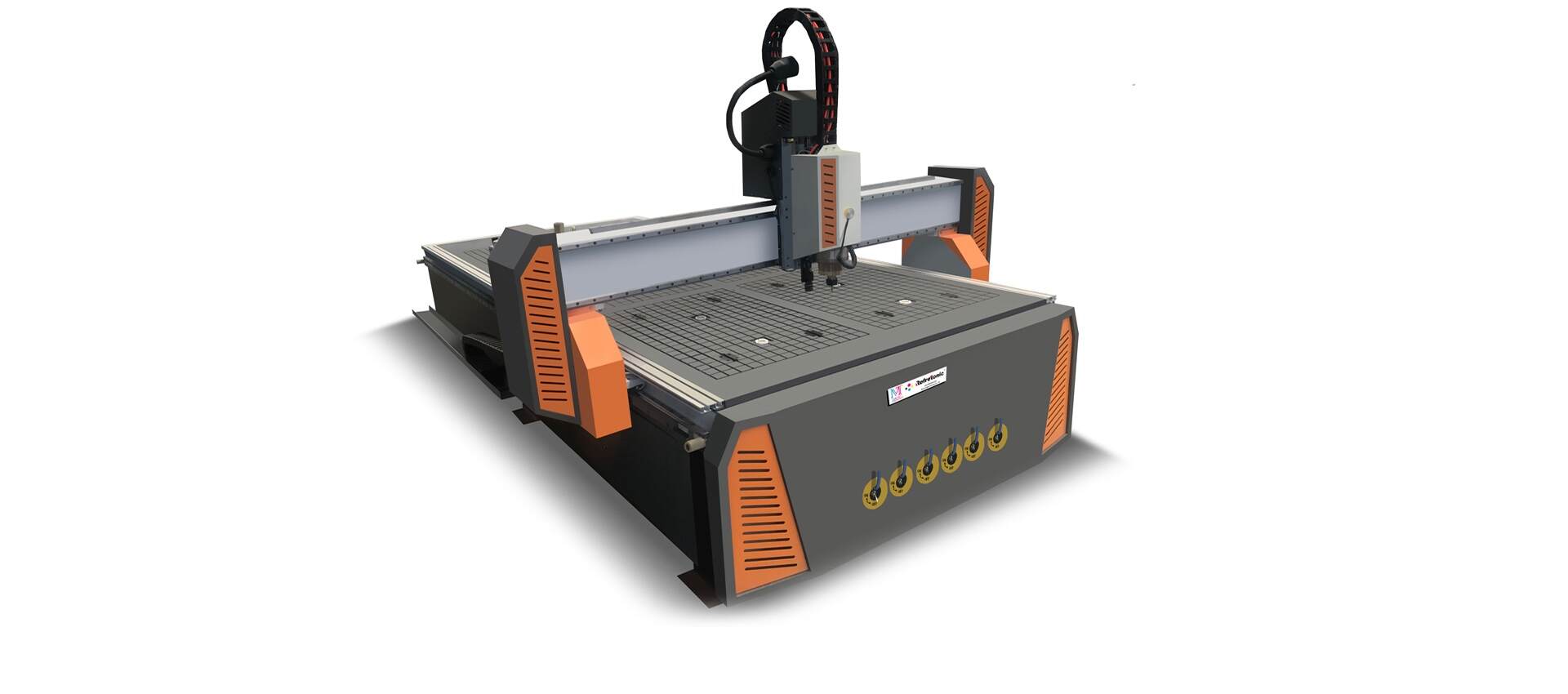

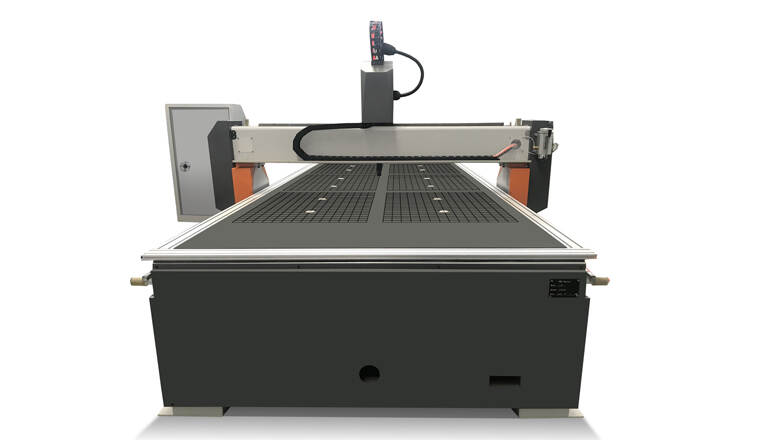

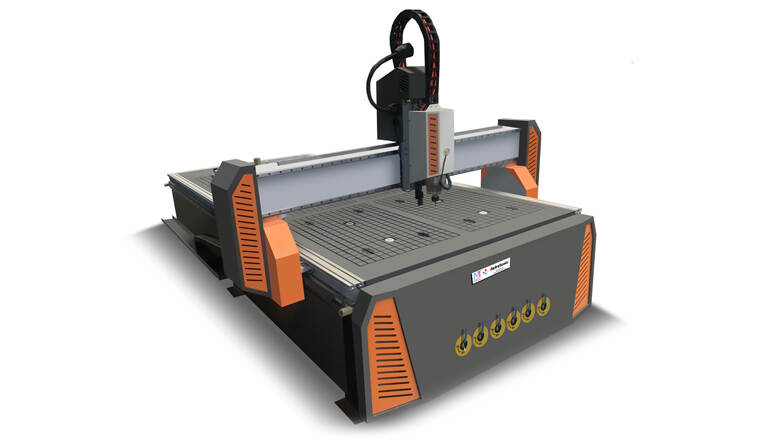

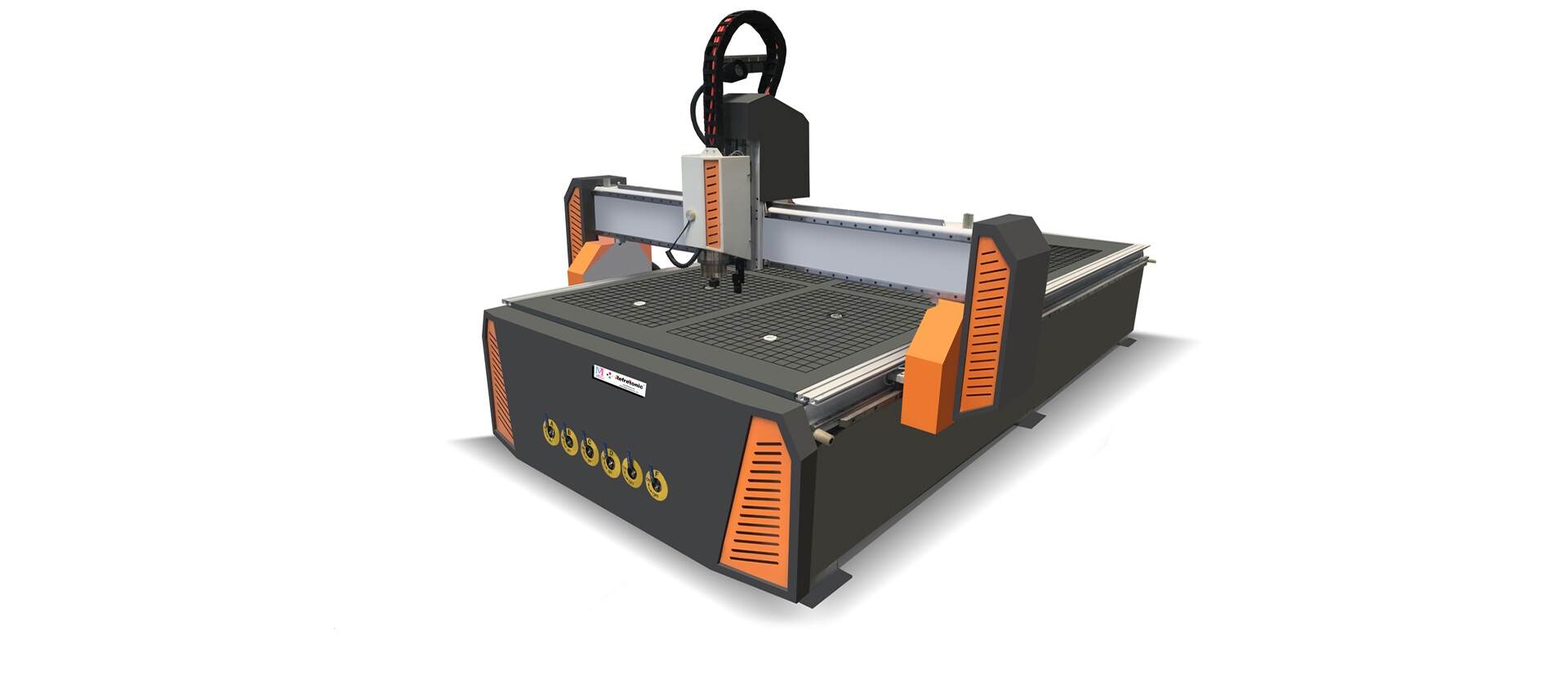

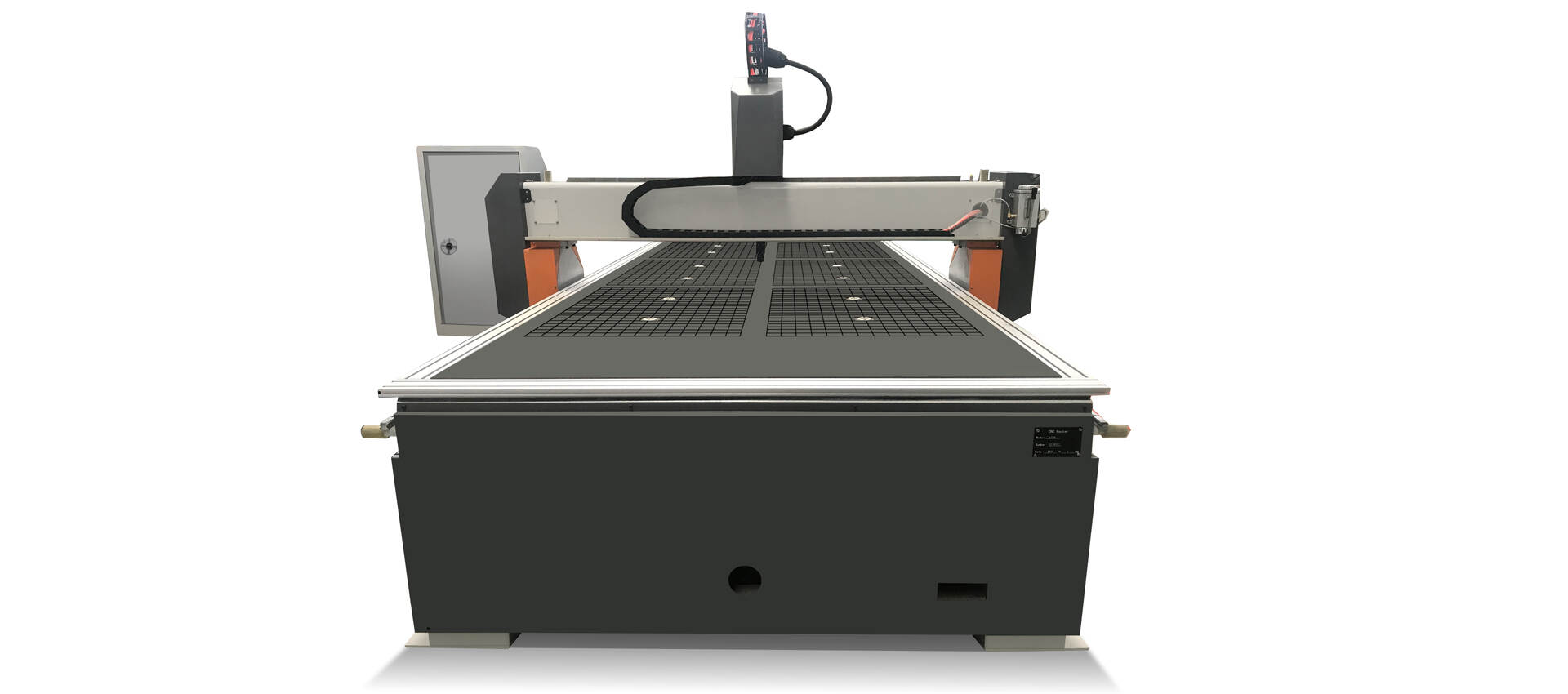

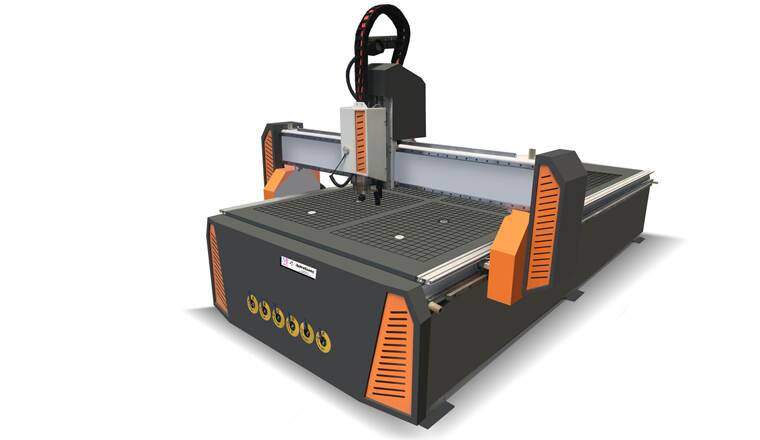

MT Industrial is also a CNC Engraving Machine manufacturer, our CNC Engraving Machine is widely used in process for wooden single lines, wooden milling, 3D cutting and engraving, which can be apply in furniture processing industry, woodworking decoration, wood art work, home decoration, doors manufacturing.

Feature

1. MT CNC Engraving Machine adopts imported linear square rails, double four-ball slider, high loading capacity, smooth operation, high precision and long life span. It also adopts imported high precision ball screws, with high-precision cutting.

2. The engraving spindle is produced by the domestic Top brand, but imported Italian air-cooled spindle is optional which provides faster speed and higher efficiency.

3. MT CNC Engraving Machine adopts imported linear square rails, which ensure accuracy of the machine and withstand large loads.

4. MT CNC Engraving Machine adopted high-power spindle motor, ensure that the machine can be greatly cutting.

5. MT CNC Engraving Machine adopted rack and pinion transmission, which is smooth and fast motion.

6. MT CNC Engraving Machine use of breakpoint memory, guaranteed in the accident (cutting blade), power cut or the next day continuous engraving processing.

7. The 3 axles of MT CNC Engraving Machine adopt anti-water and anti-dust design.

8. MT CNC Engraving Machine is using high-speed stepper motor and drive, Y-axis adopts dual-motor drive, which are selected pairs to ensure gantry smooth movement, so that the max moving speed can up to 30m/min. The speed can be more improved with strong cutting engraving spindle.

9. MT CNC Engraving Machine adopts moveable all steel structure gantry. Inblock steel cast machine body made the structure frame durable without any deformed after working long-term and more precise positioning accuracy.

10. MT CNC Engraving Machine designed with good software compatibility that can work with Typ3, Artcam, Castmate, UCANCAM and others like CAD and CAM design software.

11. MT CNC Engraving Machine can engrave signboard, nameplate without serrated curving, which owns smooth contour and clear bottom. It could easily cut and engrave 3cm acrylic and plexiglass.

12. MT CNC Engraving Machine can process wood, double color sheet (PVC, EVA), crystal, aluminum, resin, organic glass etc. The CNC Engraving Machine mainly realizes engraving pictures and cutting words of the wooden materials. It also can process and produce of wooden boards, wooden molds, gifts, woodworking building model and so on.

13. Intelligent protect working table system can protect CNC Engraving Machine damages by human errors.

14. MT CNC Engraving Machine equipped with advanced vacuum working table and vacuum pump and dust collector system with 6 sections separately control.

15. MT CNC Engraving Machine provides optional engraving size: 600*900mm, 1200*2400mm, 1300*1800mm, 1300*2500mm, 1500*3000mm, 2000*3000mm (Other size can be customized according to specific requirements).

Optional engraving spindle: 3KW/4.5KW/6KW air-cooling system.

Option parts: rotary axis, multi-spindles.

Application

MT CNC Engraving Machine is suitable for mass processing of solid woods, MDF, Composite boards, Alucobond, PVC, Rigid plastics, Acrylic Sheets, Glass, Organic glass, Aluminum plates and other materials.

Product Specification
