Company Advantage
We promoted the technical innovation in the digital inkjet printing facilities production.
The MT Industry has been keeping developing! -
Customer Service
Please contact us if you have any doubt, problem or trouble regarding to our products. Just click “LIVE CHAT”!
-
Guarantee Policy
We provide with 1 year warranty, but gain PERMANENT GUARANTEE with continuous ink order!
-
Payment Terms
We are committed to providing the most convenience payment term; the Client can choose T/T, L/C, PayPal and West union!
-
Packing Standard
The most environmentally friendly and strong packaging, the clients no need worry in the delivery process!
-
Transportation & Delivery
We provide the most convenient, safe, fast Transport after we get the purchase order, even provide home delivery!

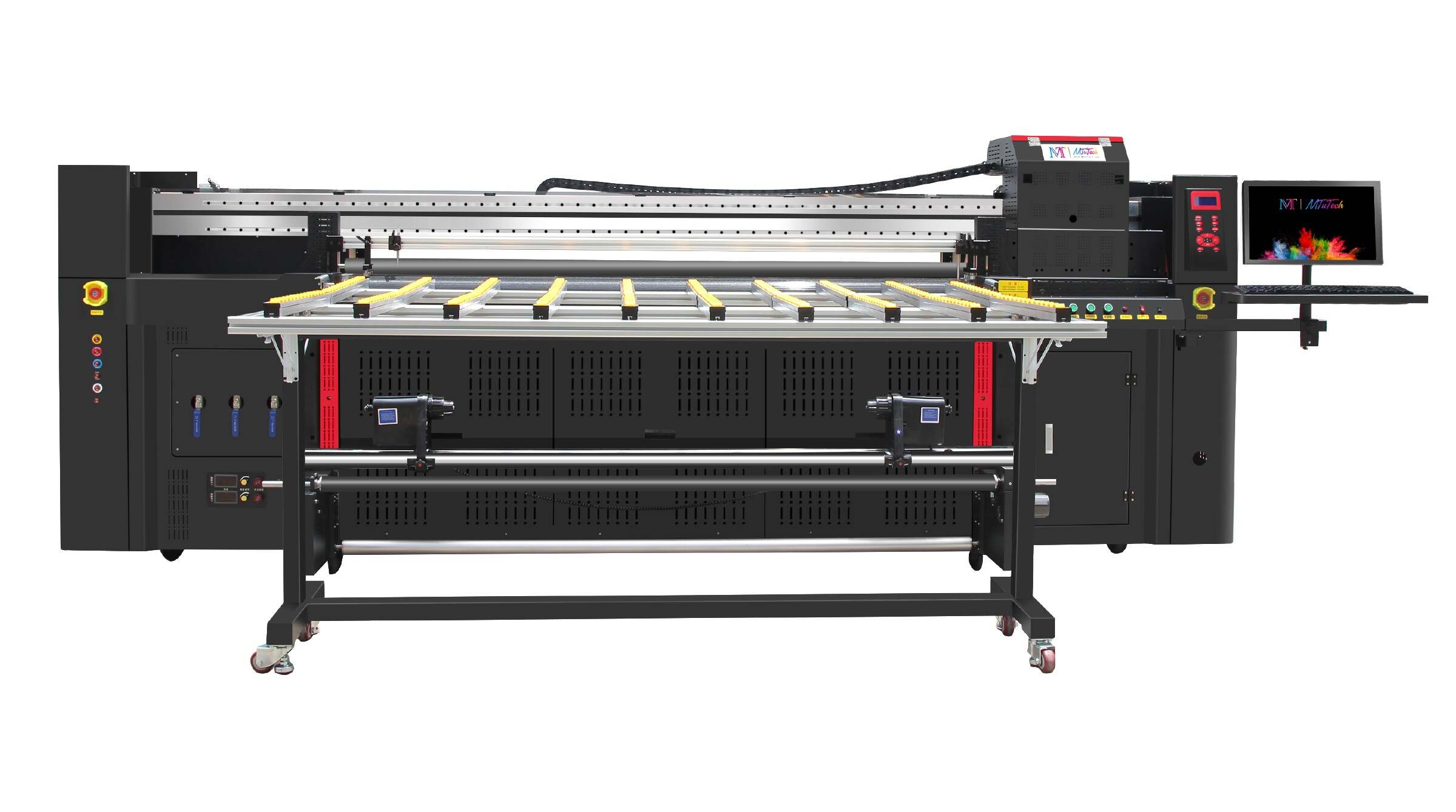

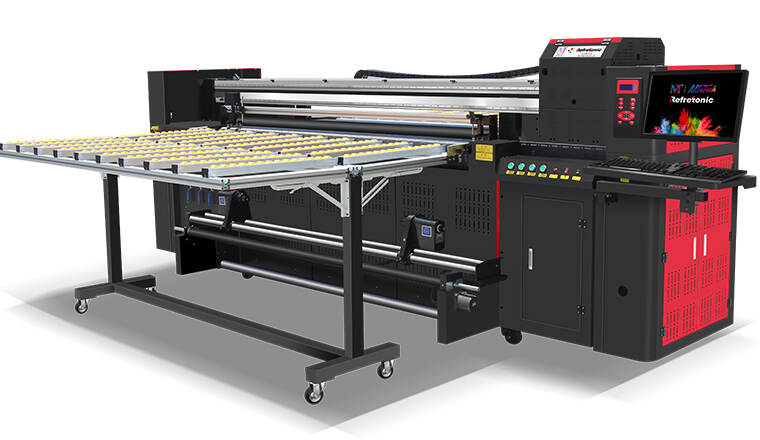

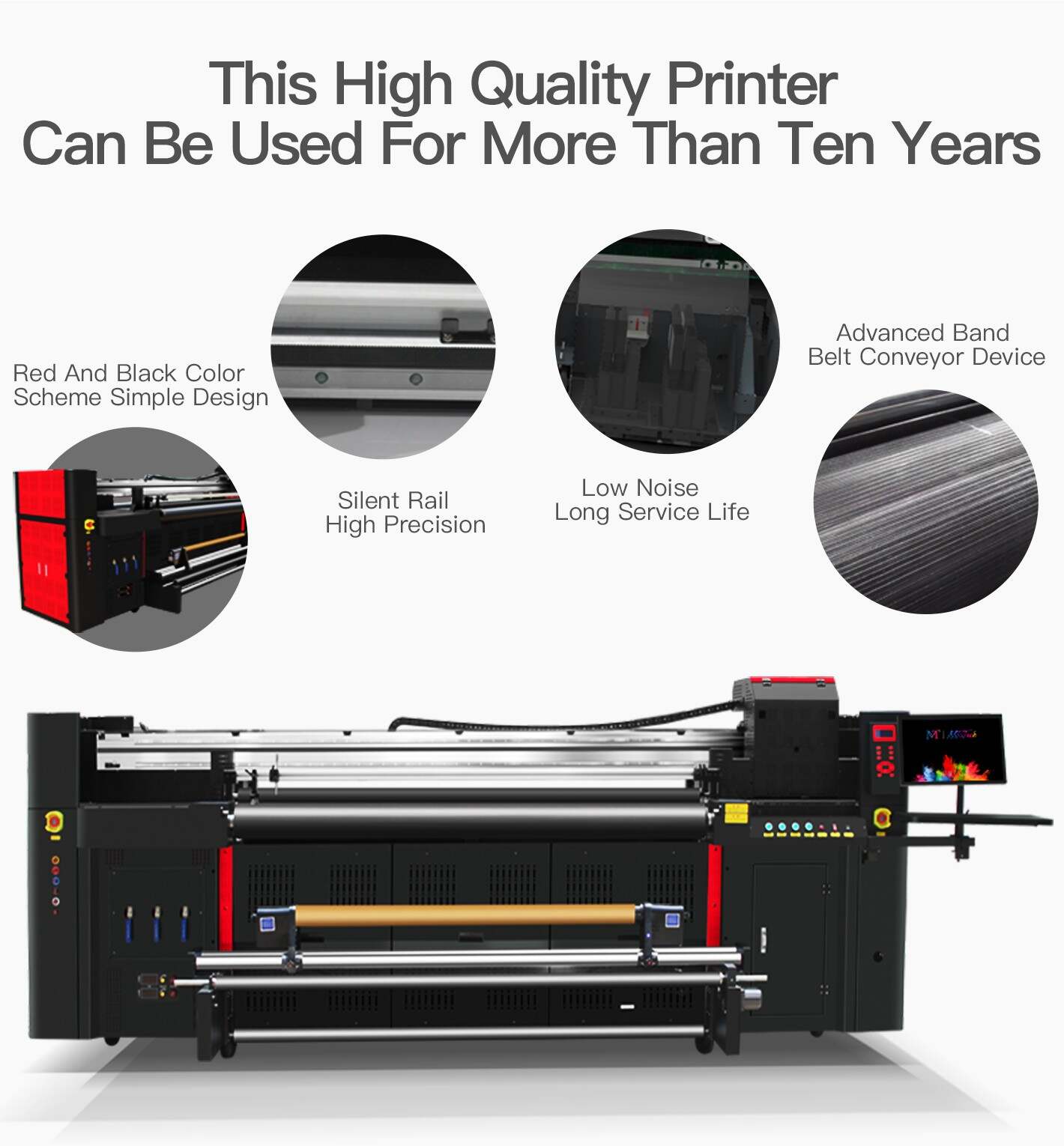

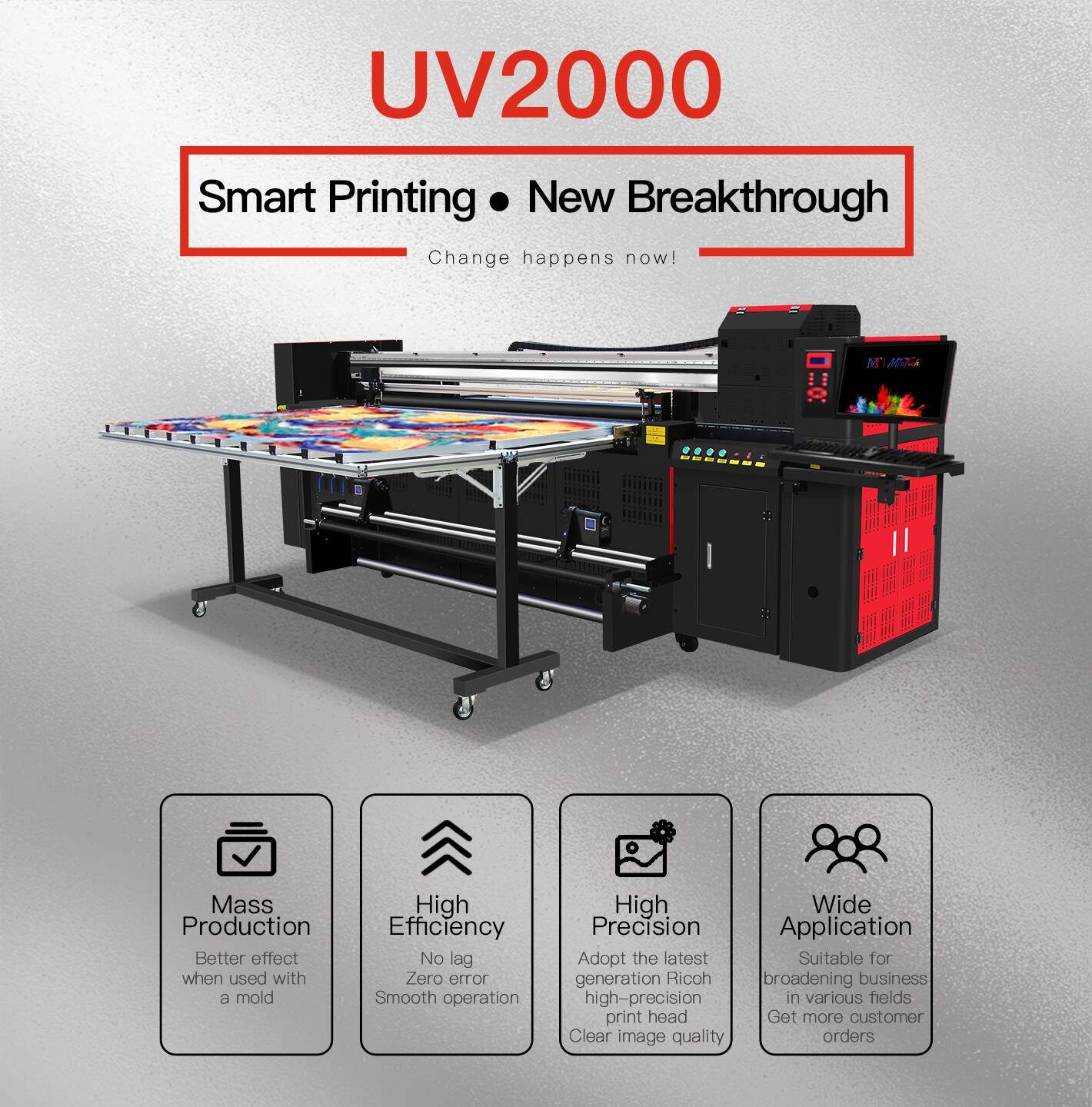

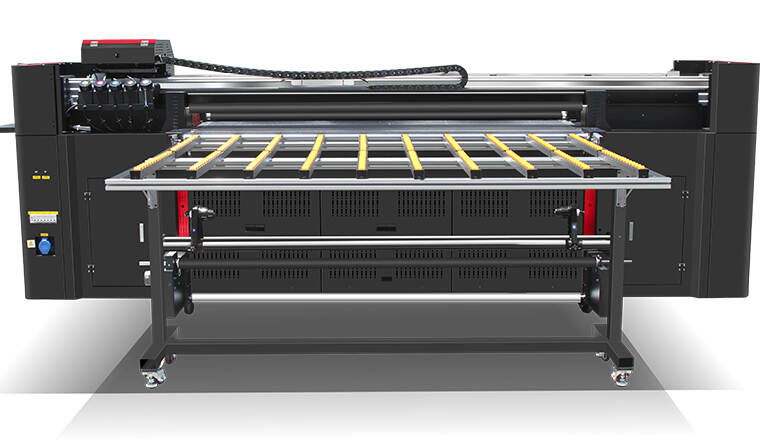

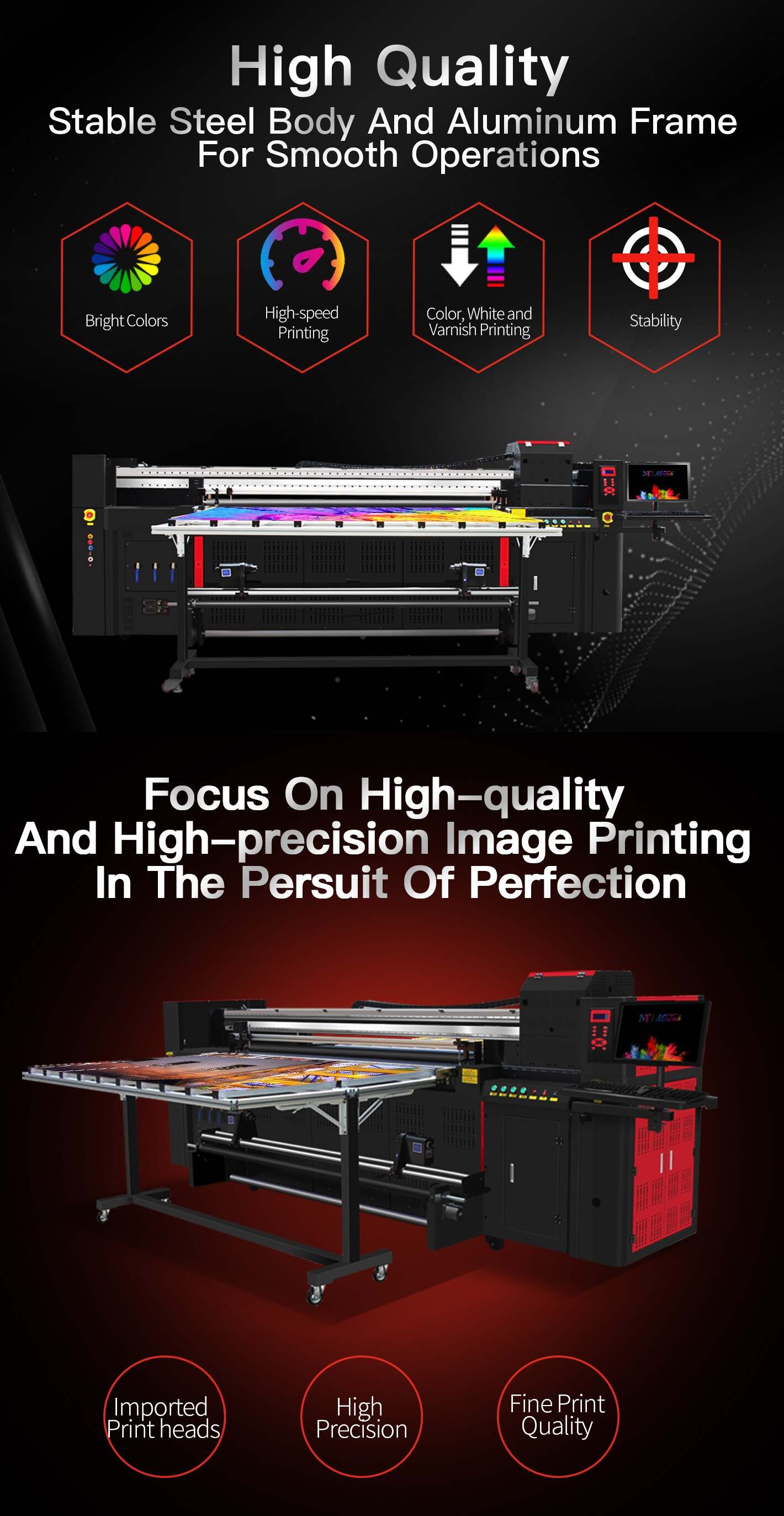

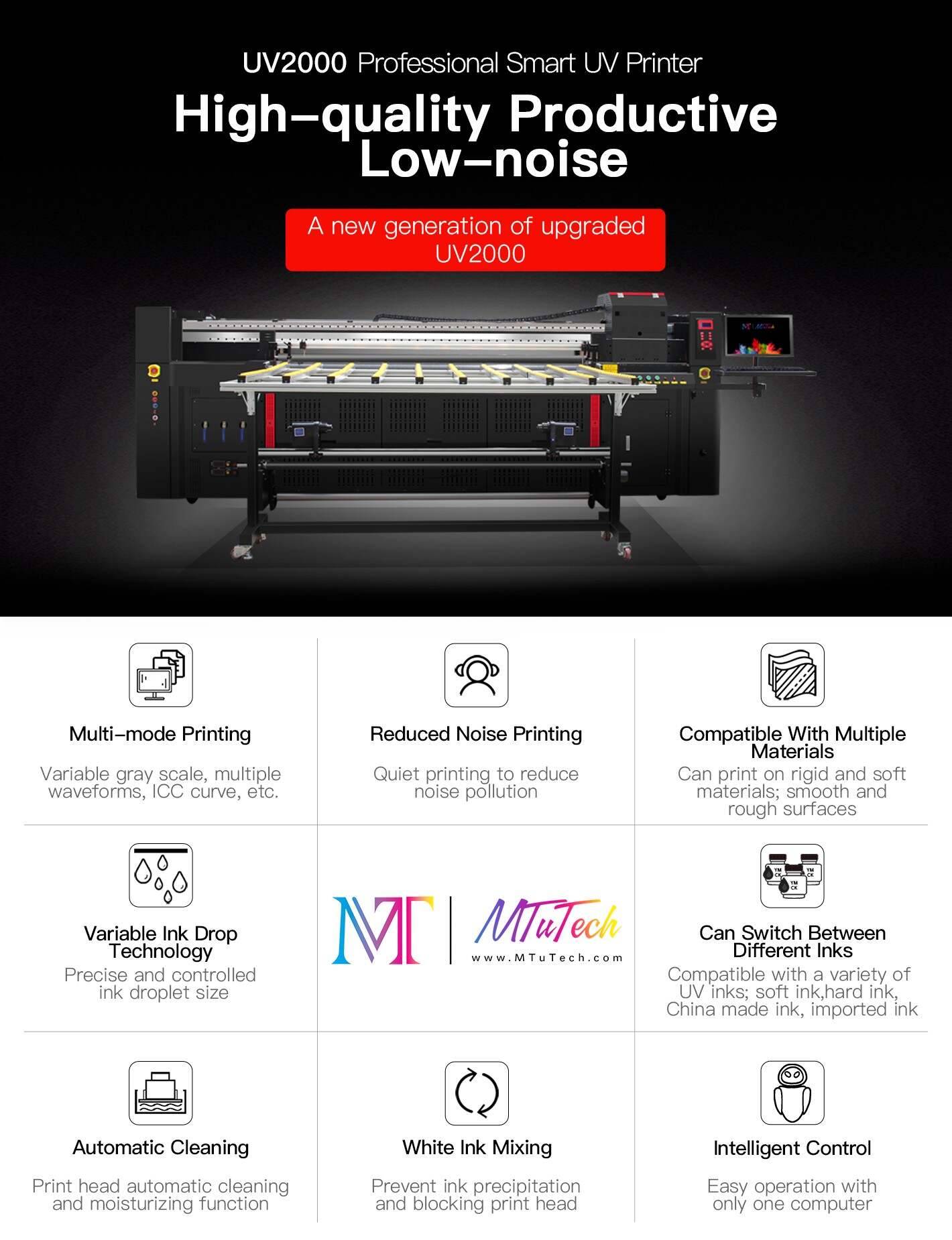

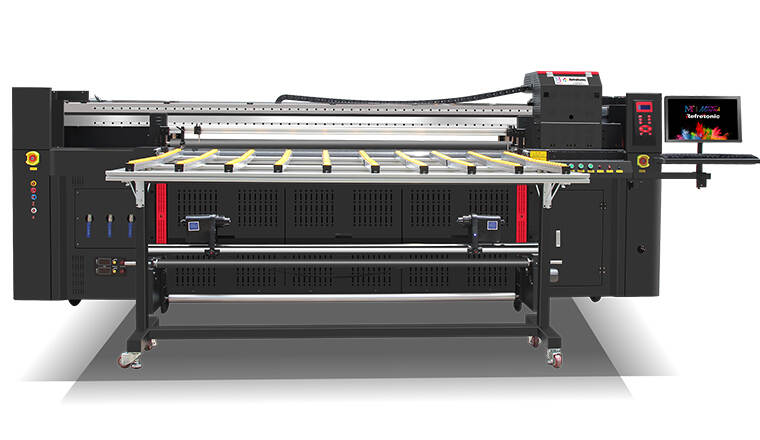

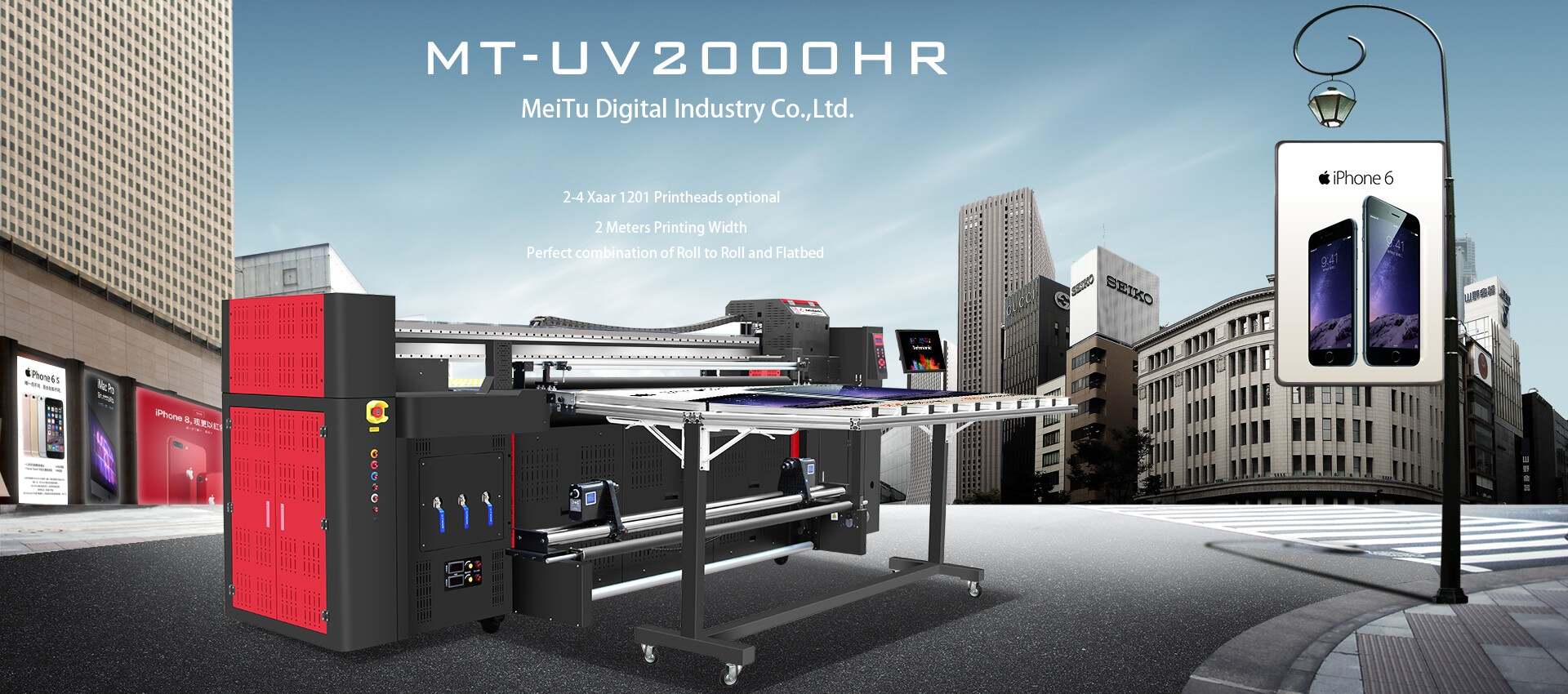

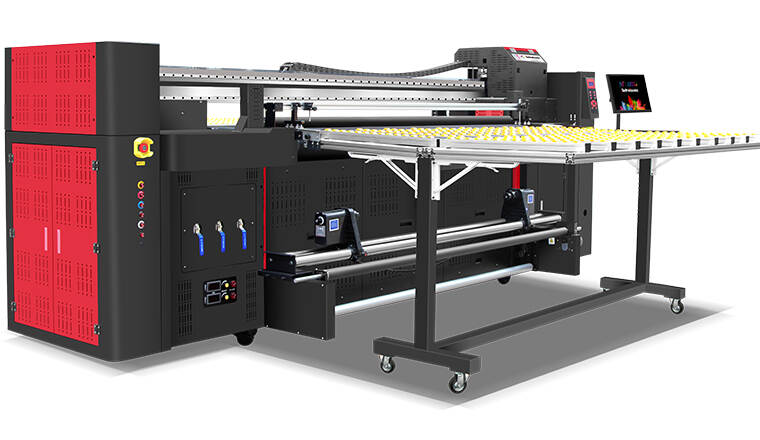

| Mode Type | Hybrid UV Printer MT-UV1800 (Roll To Roll & Flatbed) | |
|---|---|---|

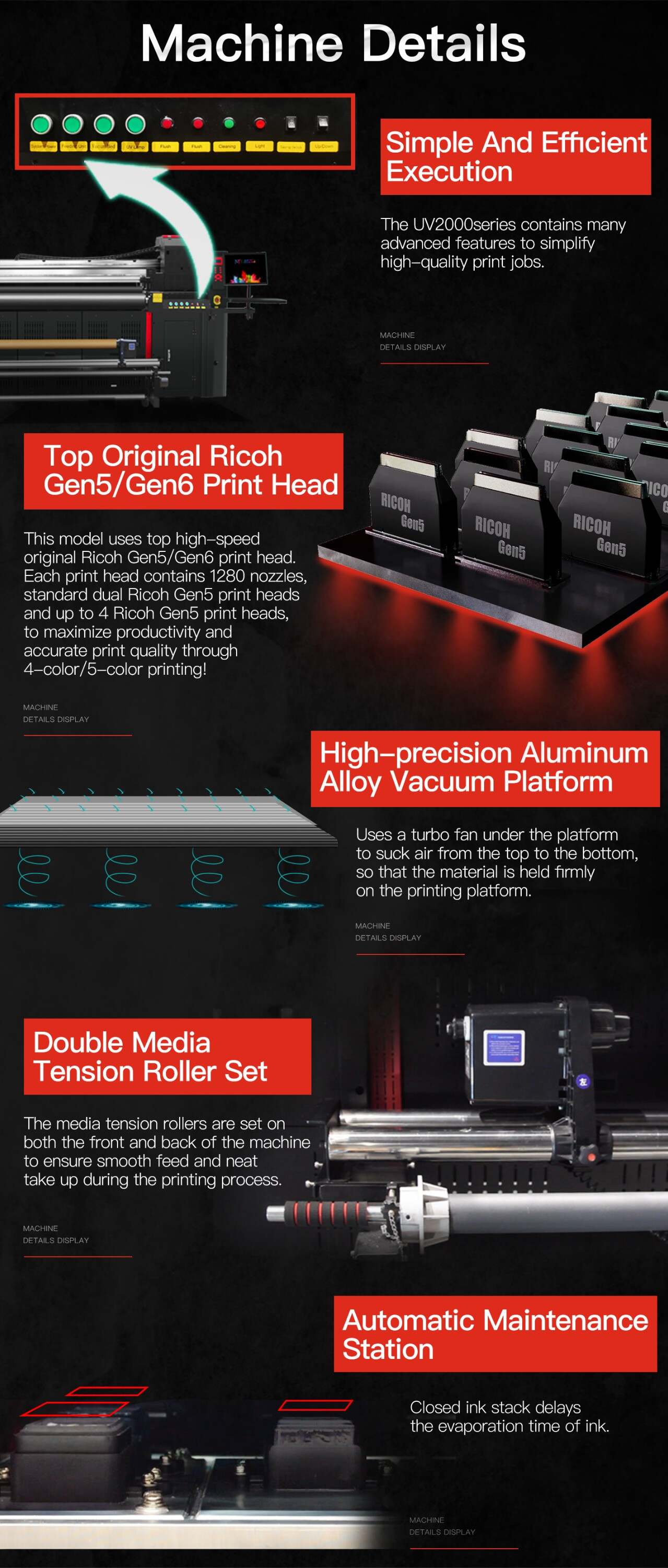

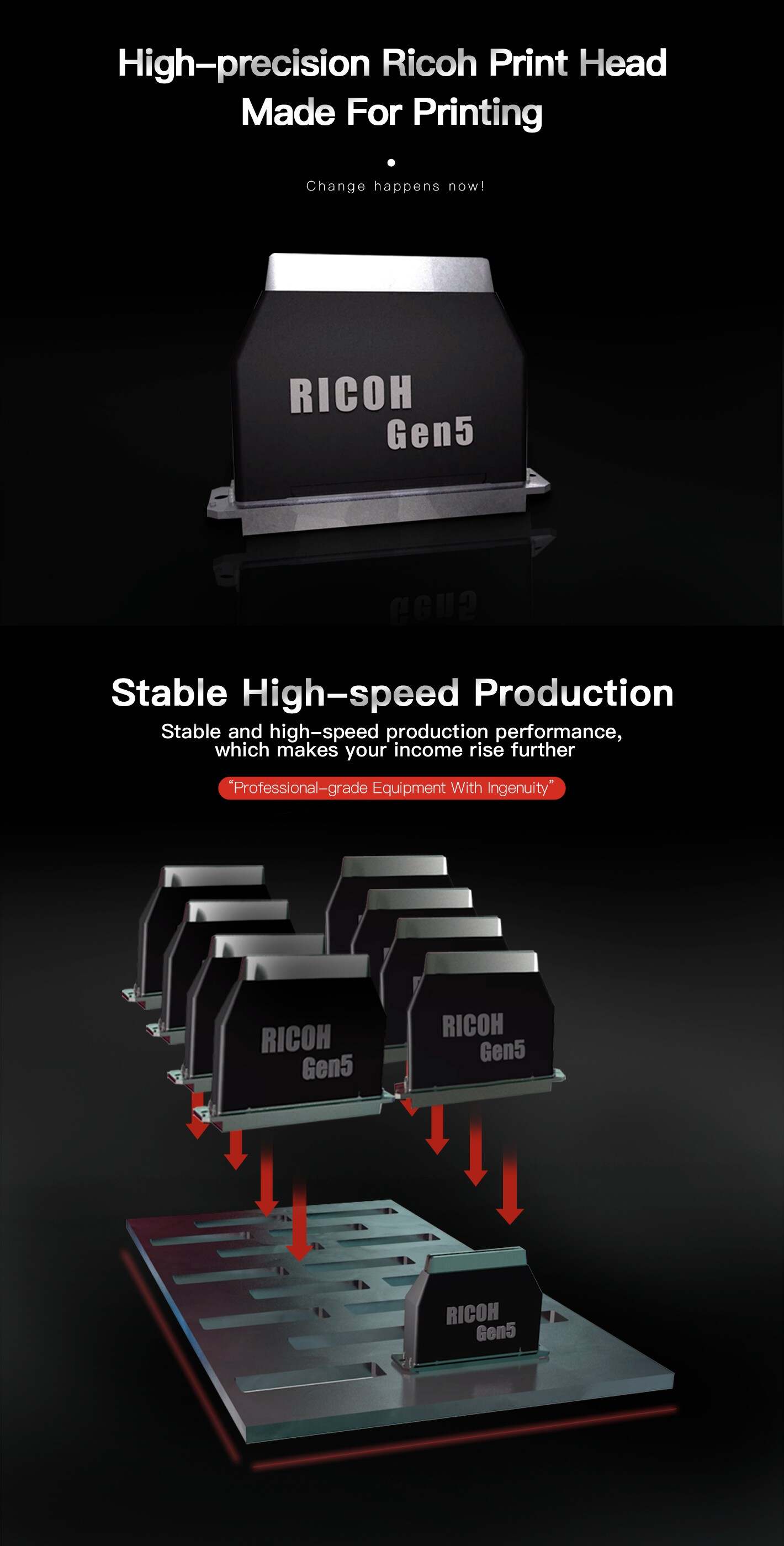

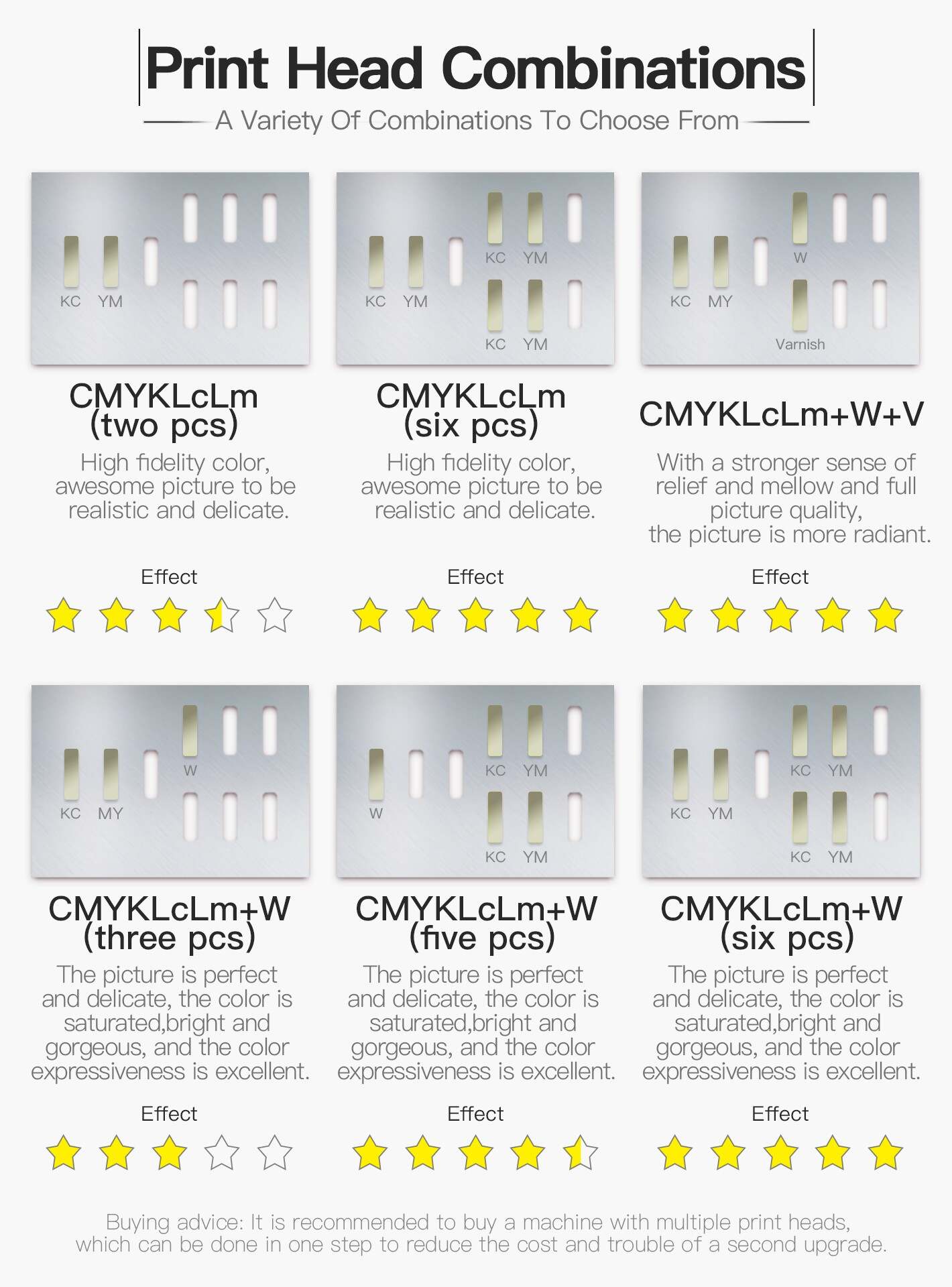

| Printhead | Four Ricoh Gen5 Drop-on-demand Micro-Piezo Printheads (Two Ricoh Gen5 Printheads Is Optional) | |
| Number of Nozzles | 1280 Nozzles X 4 Ricoh Gen5 Printheads | |
| Color | 4 Colors, Double 4 Colors, 5 Colors, 5 Colors + V | |
| Resolution | 1280dpi (Max.) | |
| Height Of Printhead | Up To 80mm | |
| Size Of Ink Droplet | 2.5-21pl | |
| Max. Printing Width | 2000mm | |
| Max. Media Width | 2100mm (Max.) | |
| Real Time Tracking | None | |
| Printing Speed | 4pass | 60.0sq.m per hour |
| 6pass | 52.0sq.m per hour | |
| 8pass | 44.0sq.m per hour | |
| 10pass | 32.0sq.m per hour | |
| 12pass | 20.0sq.m per hour | |
| Media Feeder | Yes | |
| Media Take-up | Yes | |
| Material | Max. Weight | 100kg |
| Application Type | Wallpaper,soft film,Wall Art,Sign Advertising,Paper,Poster,Promotion Products,Leather,PU,PMMA,PVC,PP,PE,PTFE,Ceiling,Home & Office Decoration,Oil Painting,Fresco,Wedding Photography,Mark And Signs,Exhibition,Flex, Banner,Knife Coated Substrate,Double Side Printing Banner,Advertising Cloth,Adhesive Vinyl,One Way Vision,Mesh,Reflective Banner,Reflective Vinyl,Etc...... | |

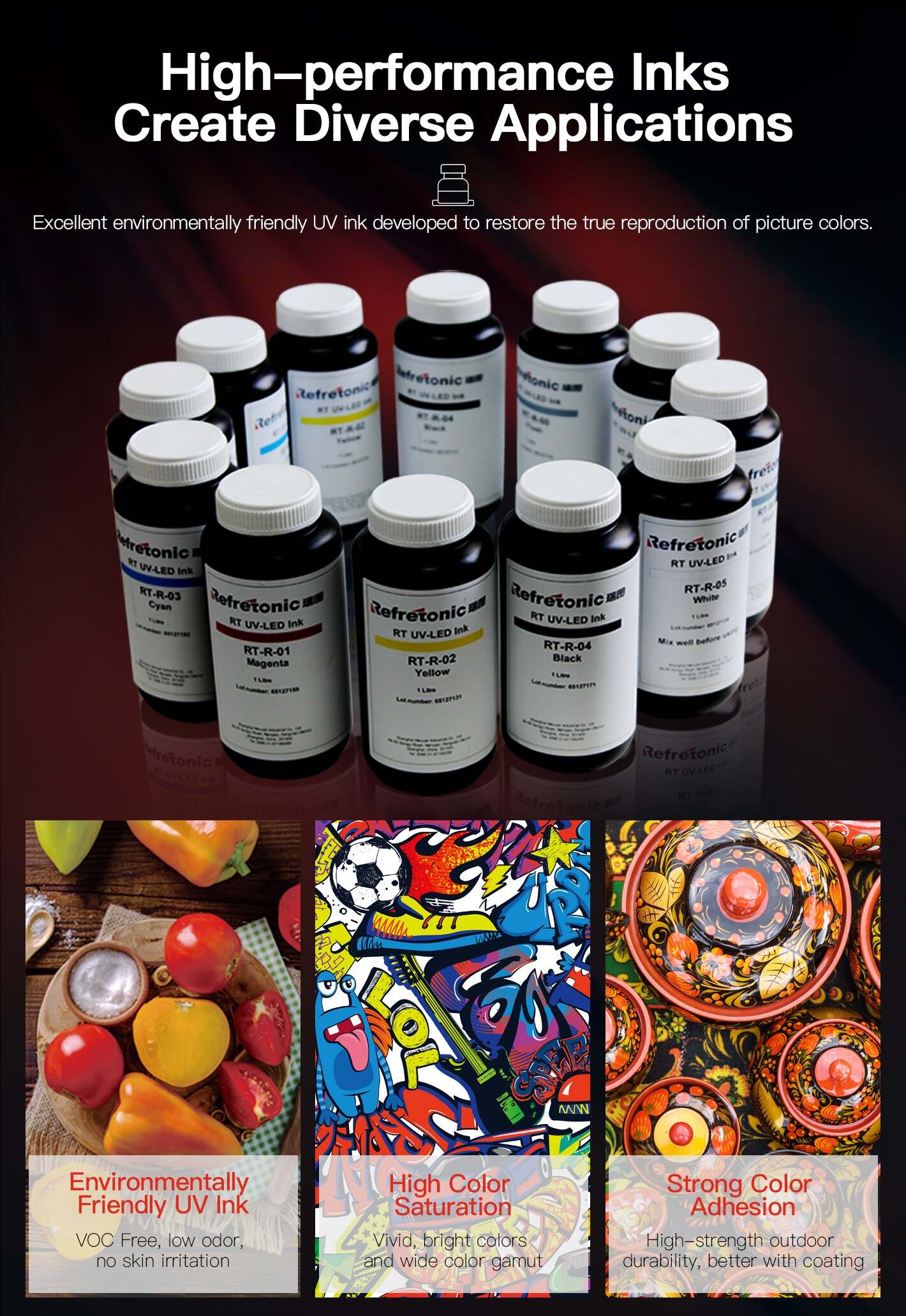

| Ink | Type | Import Soft UV Curing Ink / Rigid UV Curing Ink (3 Years Outdoor, 10 Years Indoor, Both Without VOC) |
| Ink Tank Reservoir Capacity | 5 * 2.5 Liter Bulk Bontinuous Ink Supply System | |
| Negative Pressure System | Vacuum Ink Supply Fluency Ink Flow Without Missing Nozzle | |
| Ink Curing System | Two LED Curing Lamps With Water Cooling System | |
| Media Adsorption | Multi-section Intelligent Suction System With Adjustable Strength | |
| Interface | High Speed USB Transmission USB2.0/3.0 | |
| Power | Power Voltage | AC220-240V 50-60HZ, AC110-120V 50-60HZ (optional) |
| Control Software | Print Console | |
| RIP Software | Maintop (Photoprint, Wasstch Optional) | |

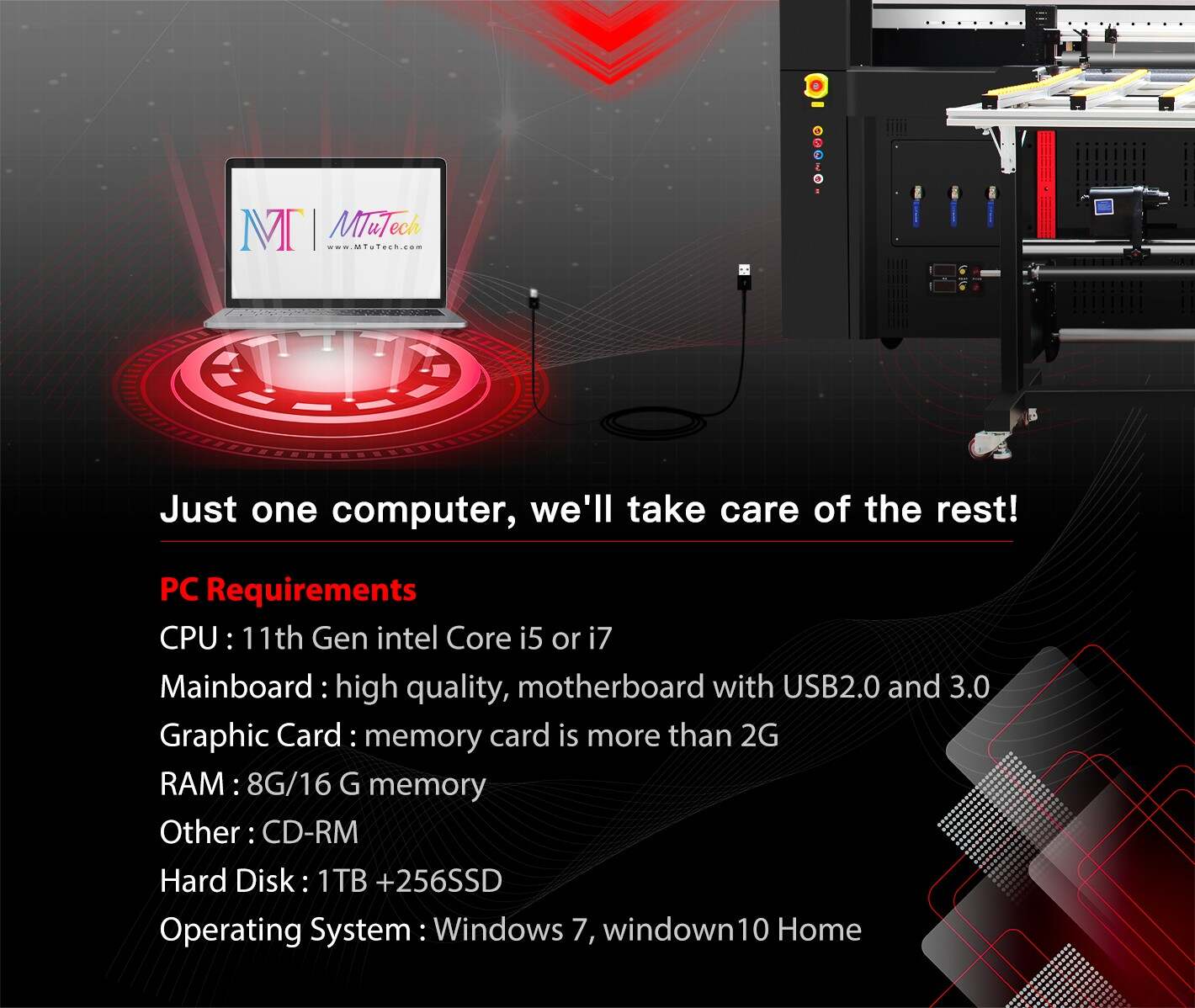

| Operation System | MS Windows XP, Windows 7 | |
| Printing Environment | Temperature 15-35 Degrees, Humidity 30-65 Rh | |
| Picture Type | JPG PSD TIFF | |

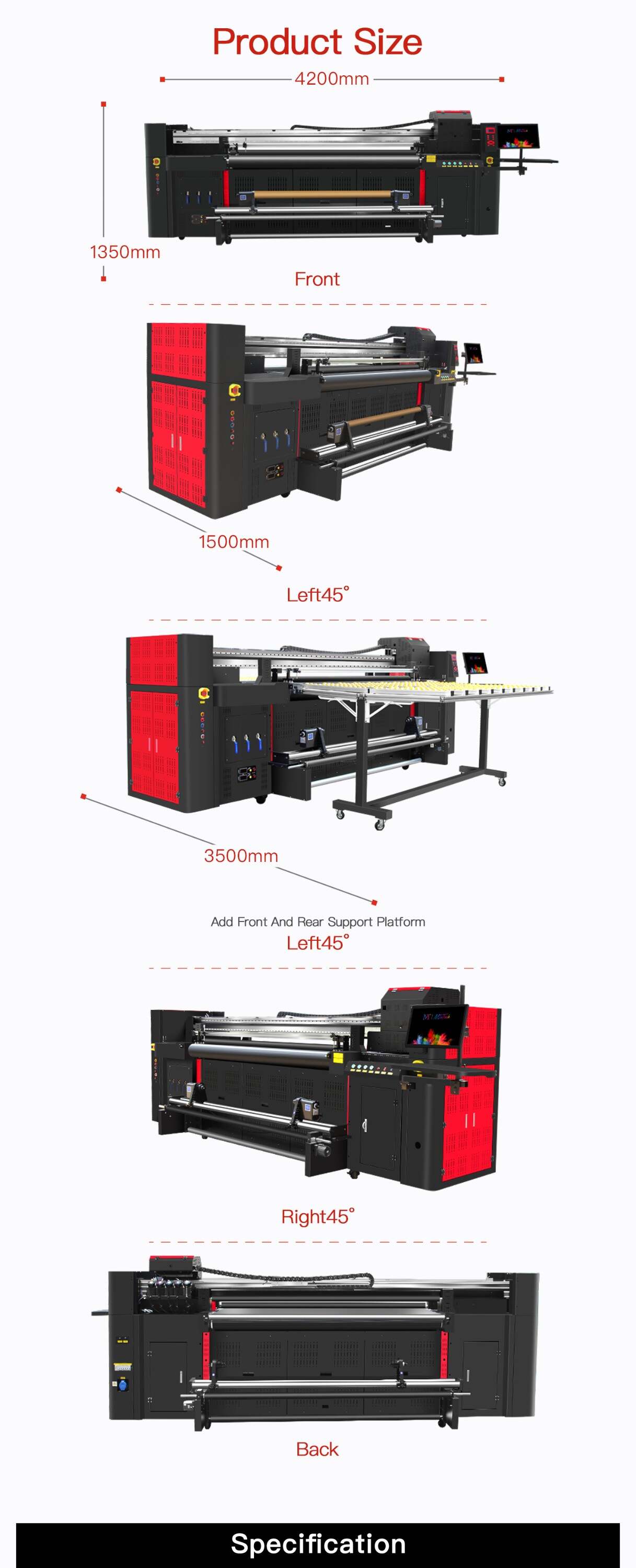

| Printer Dimension | W4200 * D1500 * H1350mm | |
| Packing Dimension | W4300 * D1700 * H1740mm | |
| Net Weight | 750kg | |
| Gross Weight | 900kg | |
![3P_]E5HG]$B)$X}EW}KL)`X](/uploads/images/202109/2bbf2a45c21db797b09258bdc6c43b80.jpg)
