Description

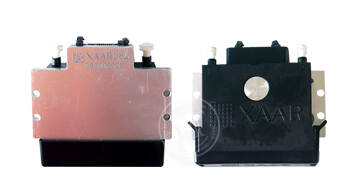

Xaar382 35PL printhead

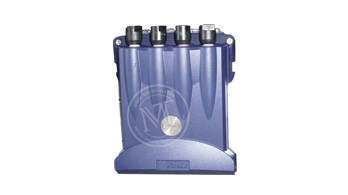

Simple to install and easy to integrate are the two key characteristics of the Xaar Proton printhead. Using the same electronics as the Xaar 500 (similar to the Xaar 126 electronics) the Xaar Proton provides existing Xaar customers an easy integration path with minimal product development.

Highest Print Quality

35pl drop size

180dpi native resolution

Consistent drop placement

Increased Productivity

9.5kHz firing frequency

Wide 53.7mm print swathe

Simplest IntegrationSelf-initialising on start-up

Lockable fluid and electrical connections

On-board waveform and temperature compensation

Simple pressure prime to fill.

1.XAAR 382 with proton printhead

Excellent print performance XAAR 382 printhead

2.The highly productive Xaar Proton is a wide-swathe, high-resolution binary printhead.

The latest ‘chevron’ actuator technology delivers consistent and reliable operation for the indoor & outdoor graphics markets.

Printer manufacturers will find a host of features that make this printhead easy to integrate, reducing set up times and ensuring maximum profitability.

3.Applications

The Xaar Proton has been designed to produce outstanding print quality for the indoor and outdoor graphics market – rapidly and consistently

Delivering a 35pl drop ensures sufficient resolution to meet today’s demands of the graphics and signage markets and with a 53.7mm swathe, high-speed multi-pass printing is a reality.

Ink type: Solvent ink

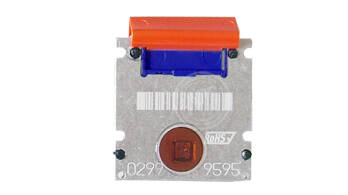

Xaar128/360  printhead for solvent ink

1.Fast:The Xaar runs at linear speeds of up to 660mm/s and can provide print coverage of up to 38 sq. Metres per hour.

2.Adaptable:The Xaar has advanced control logic functions and electronics that enable better tuning and flexible control of different ink characteristics.

3.Easy to set up and maintain:A solid zinc frame with unique mounting brackets makes the Xaar easy to mechanically mount and align. To further reduce set-up time the printhead possesses inlet/outlet ports, simplifying filling and exchange of inks.

4.Applications :Adaptable for a wide spectrum of applications this flexible printhead is supplied with a broad range of approved inks to provide customers with a rapid development route.

Ink type: Solvent ink

Xaar128/200  printhead for solvent ink

1.Fast:The Xaar runs at linear speeds of up to 660mm/s and can provide print coverage of up to 38 sq. Metres per hour.

2.Adaptable:The Xaar has advanced control logic functions and electronics that enable better tuning and flexible control of different ink characteristics.

3.Easy to set up and maintain:A solid zinc frame with unique mounting brackets makes the Xaar easy to mechanically mount and align. To further reduce set-up time the printhead possesses inlet/outlet ports, simplifying filling and exchange of inks.

4.Applications :Adaptable for a wide spectrum of applications this flexible printhead is supplied with a broad range of approved inks to provide customers with a rapid development route.

Ink type: Solvent ink

Xaar128/200+  printhead for solvent ink

1.Fast:The Xaar runs at linear speeds of up to 660mm/s and can provide print coverage of up to 38 sq. Metres per hour.

2.Adaptable:The Xaar has advanced control logic functions and electronics that enable better tuning and flexible control of different ink characteristics.

3.Easy to set up and maintain:A solid zinc frame with unique mounting brackets makes the Xaareasy to mechanically mount and align. To further reduce set-up time the printhead possesses inlet/outlet ports, simplifying filling and exchange of inks.

4.Applications :Adaptable for a wide spectrum of applications this flexible printhead is supplied with a broad range of approved inks to provide customers with a rapid development route.

Ink type: Solvent ink

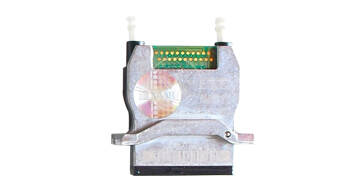

Xaar126 35/50/80PL  printhead for solvent ink

XAAR126/80 (200) 200DPI speed can reach 6 meters / second, color identification is blue on the back of the old model. The new one is the silver-gray aluminum alloy, marked 126/80 on the print head (the commonly used models in the market)

Compatable with printers:

Infiniti FY-6150 / FY-8250 / FY-3312C, Sun New Drakar / New Drakar Pro

Model Number : Xaar XJ126/35

Active nozzles: 126

Print swathe width: 17.2mm

Nozzle pitch: 137.3um

Nozzle density: 185npi

Drop velocity: 6m/s

Printhead weight: 22g

Dimensions (W*D*H): 45*43*11.8mm

Drop volume: 80pl

Ink type: Solvent ink
